Alupanel Lite

An economical, dual-sided, reduced weight sheet designed for flat applications where a high load-bearing capacity is not required.

Why use Alupanel Lite?

  • Premium lightweight panel for flat applications
  • Has a 100% Recycled LDPE core and can be fully recycled after use
  • Meets fire test EN 13501 to class C-s2,d0 *
  • UV resistant for outdoor use
  • Flat, smooth, uniform surface **
  • Suitable for screen and digital print ***
  • Compatible with vinyl lamination
  • Clean, easy-peel film
  • 2 year warranty ****


* Includes all painted finishes, excludes Brushed and Mirror finishes

** Brushed finishes are produced from natural aluminium and therefore as a natural raw material and despite each sheet being very similar the finish and tone can differ slightly between sheets and batches

*** Mirror (Gold and Silver) and Brushed finishes (Aluminium, Gold, Bronze, New Copper, Black) are printable but do not have a digital finish or guarantee. Please test print first and consult your hardware for supplier before printing on reflective surfaces.

**** Brushed Lite and mirror finishes can be used outdoors for short term projects (see examples here in our gallery) however these products only have a 2-year warranty for internal use

EXPANDCOLLAPSE
AdhesiveCo-extruded to give superior adhesionCoreHigh quality PE coreAluminium skin0.2mm high grade aluminium providingsuperb flatness and rigidityPaint FinishAvailable in a wide range of colours andfinishes, painted Alupanel Lite is adual sided sheet with one side in highgloss and the reverse in a matt finish.Protective filmDesigned to protect the panel duringstorage, transit and installation

Alupanel.. High in Quality.. Wide Variety.. Committed to Deliver on time!

We have been in a successful partnership with Multipanel for many years now. Service is professional, efficient and reliable. My customers are very happy with the products they supply, and in my opinion they are the best in the market....

Johann Camilleri
Alupanel Aluminium Composite Panel

Full Details

Alupanel Lite is a reduced weight sheet derived from a 0.2mm thick aluminium surface on both sides, featuring our superior polyethylene core.

Alupanel Lite is a dual-sided product with a high gloss finish on one side - the same PE paint finish as used on the premium Alupanel sheet - and a matt finish on the reverse.

Specifically designed for applications where a high load-bearing capacity is not required, Alupanel Lite offers a reduced weight, economical option for a variety of applications.

For further information, you can access the product brochures and technical documents below.

VIEW BROCHURES
Alupanel lite Brushed OCE

Applications

Alupanel Lite can also be colour matched to almost any RAL colour - allowing corporate colours to be matched with ease.

  • Sign Making
  • Wayfinding
  • Standoff Lettering
  • Lightweight Hanging Signs
  • POS Displays
  • Vinyl Application
  • Modular Sign Systems
  • Hoarding Panels
  • Corporate ID
  • Exhibition Design
  • Outdoor Advertising
  • Interior Panels & Decoration
  • Direct UV & Screen Printing

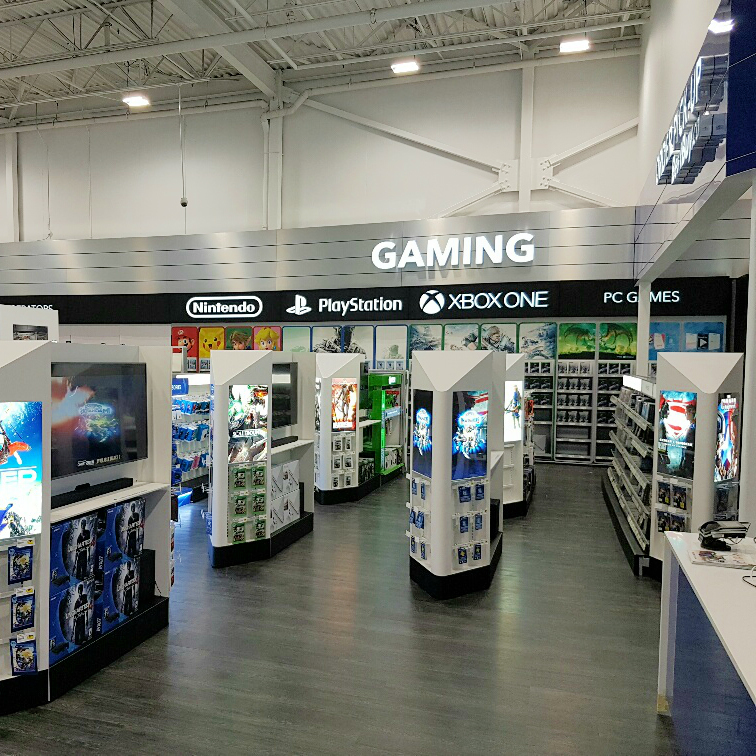

Sign Display Best Buy Gaming
Sign Display 16

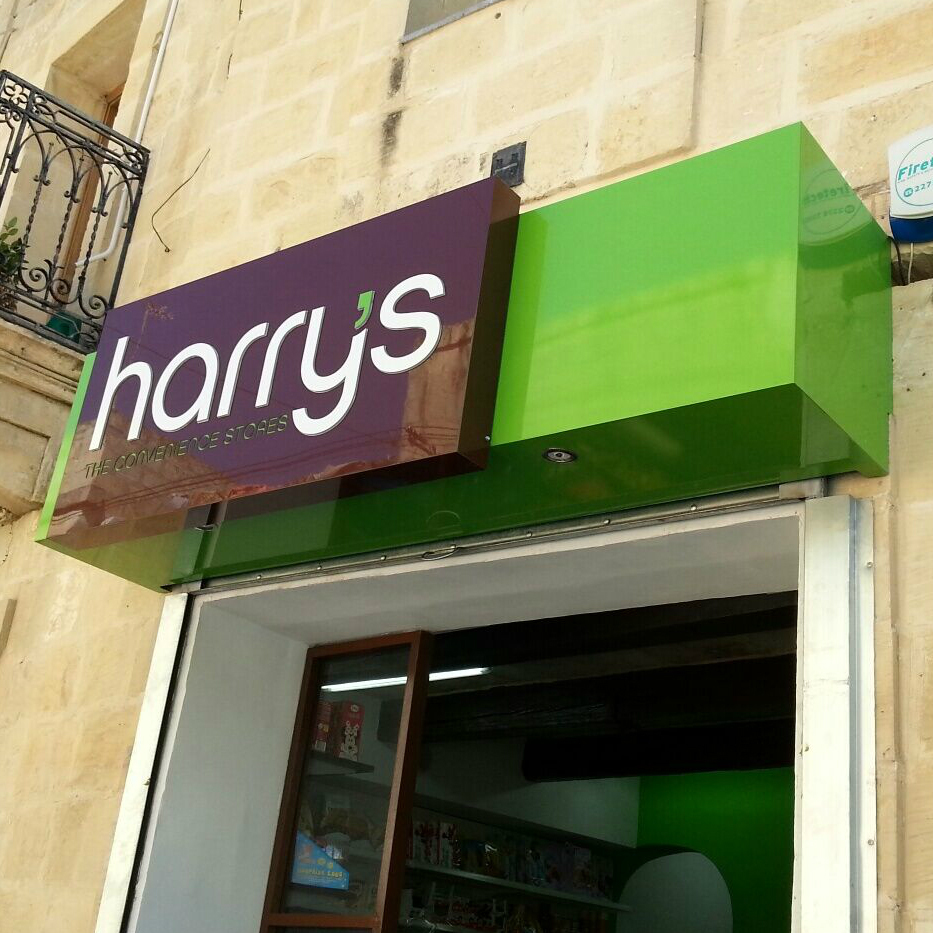

Harry2Sq

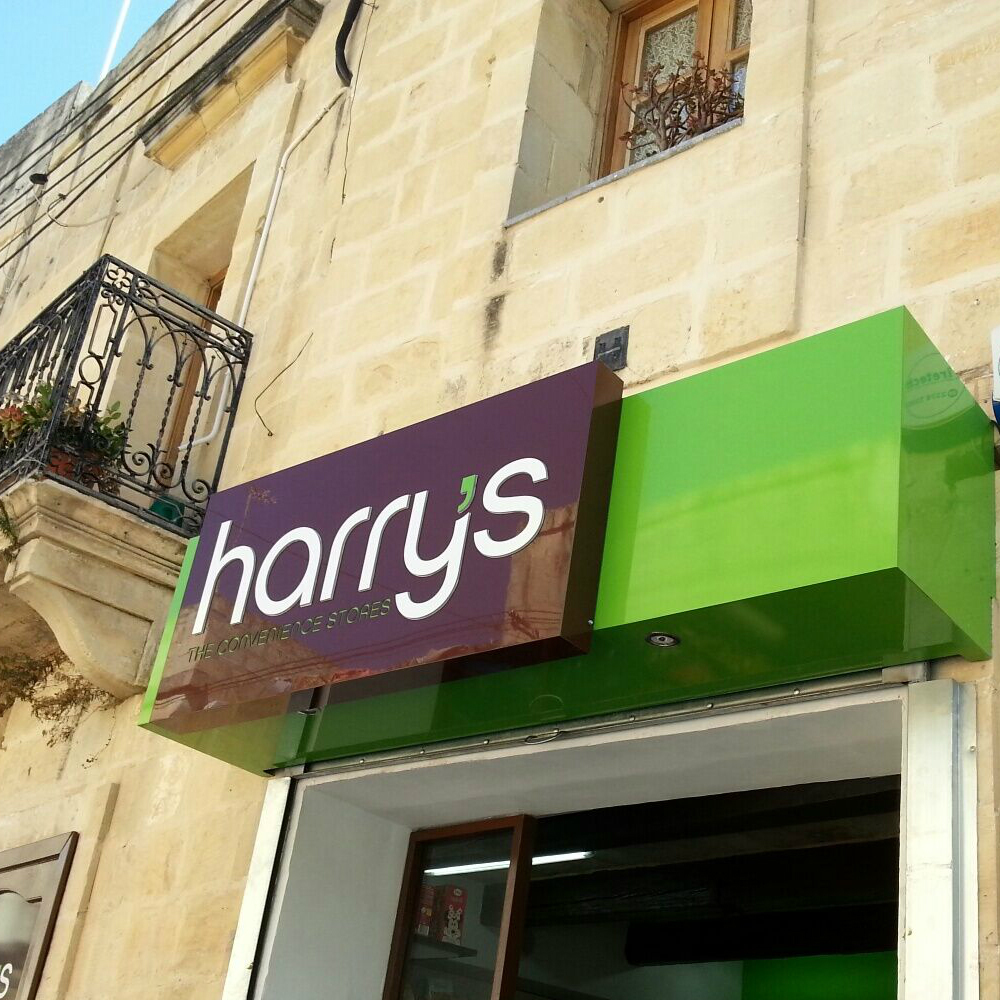

Sign Display Rsz Harry

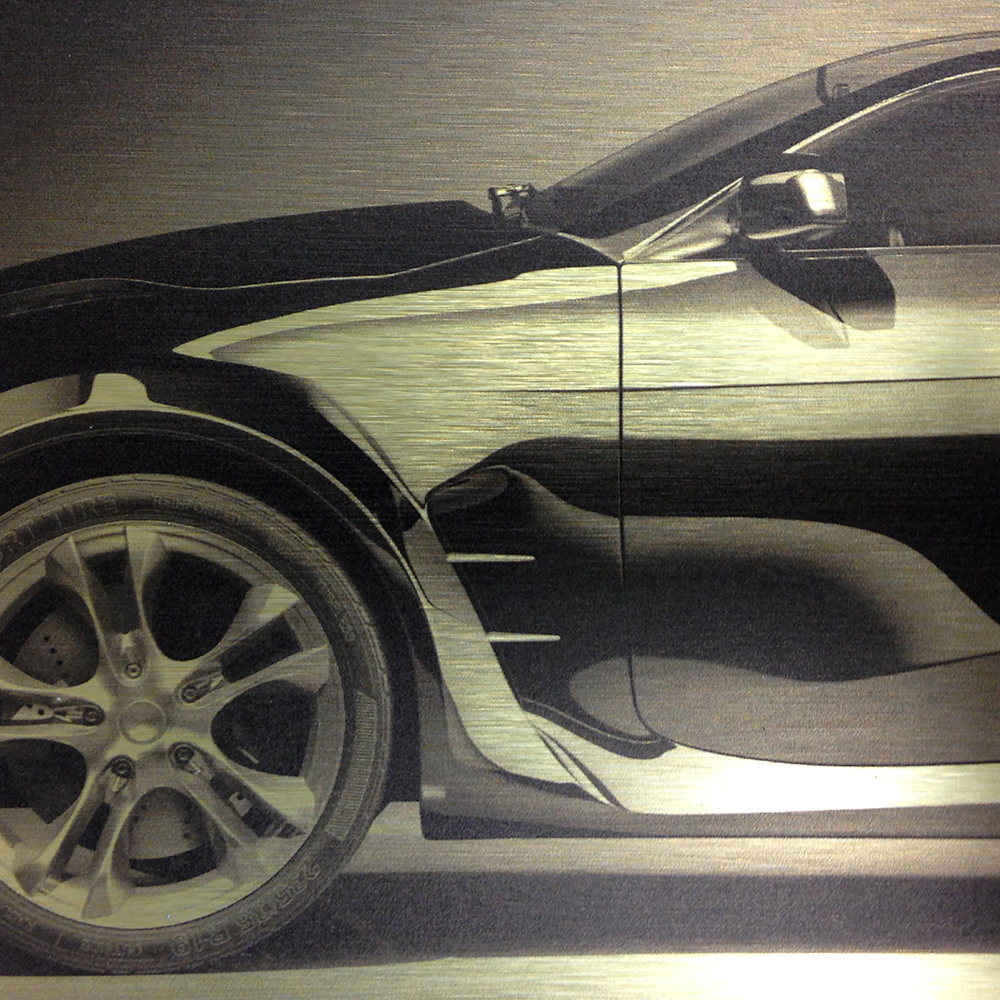

Img 0459 1000X1000

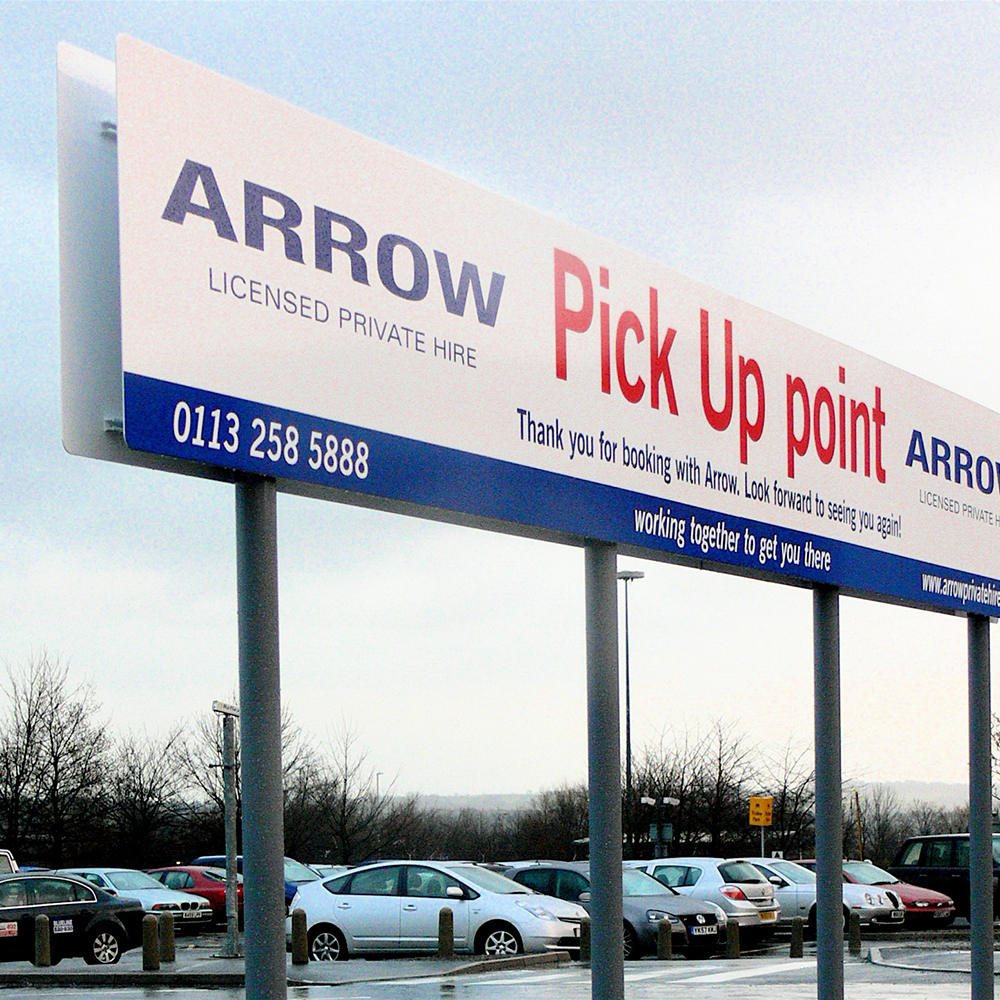

P1020433 1000X1000

Technical

Here are the sheet sizes and thicknesses available as standard along with the technical specification of Alupanel Lite.
Please note, some finishes are stocked in a limited selection of sizes, please contact us for specific details.

SIZES / THICKNESSPANEL PROPERTIESDIMENSIONAL TOLERANCESSURFACE PROPERTIES
Panel Thickness (mm)234
Skin Thickness (mm)0.200.200.20
Weight (KG/m2)2.593.54.47
1000mmx2015mm
1000mmx2440mm
1000mmx2050mm
1000mmx3050mm
1220mmx2440mm
1220mmx3050mm
1250mmx2550mm
1250mmx3050mm
1500mmx3050mm
1500mmx4050mm
1525mmx3050mm
1560mmx3050mm
2000mmx3050mm
2000mmx4050mm
2050mmx3050mm
2050mmx4050mm
Panel Thickness (mm)2346
Sound Absorption0.050.050.050.05
Sound Attenuation
Water Absorption % by Volume0.010.010.010.01
Thermal Performance R Values
Core Composition100% Recycled LDPE100% Recycled LDPE100% Recycled LDPE100% Recycled LDPE
Fire PerformanceEN 13501 C-s2,d0 (All painted finishes, excludes Brushed and Mirror)EN 13501 C-s2,d0 (All painted finishes, excludes Brushed and Mirror)EN 13501 C-s2,d0 (All painted finishes, excludes Brushed and Mirror)EN 13501 C-s2,d0 (All painted finishes, excludes brushed and mirror)
Tensile Strength of Aluminium Layers149MPa149MPa149MPa149MPa
Panel Thickness (mm)+/- 0.2
Width (mm)-0 +2
Length (mm)-0 +3
Diagonal-0 +5
Thermal Expansion2.4mm/m @100˚C Temp Difference
Aluminium ThicknessWhere applicable as specified in EN485-4
Paint Thickness (microns)20
Pencil Hardness>HB
Toughness of Coating3T
Temperature Resistance-50˚C to +80˚C
Impact Strength (kg/CM2)50
Boiling Water ResistanceBoiling for 2hrs without change
Acid ResistanceImmerse Surface in 2% HCl for 24hrs without change
Alkali ResistanceImmersed surface in 2% NaOH for 24hrs without change
Oil ResistanceImmerse Surface in 20# engine oil for 24hrs without change
Solvent ResistanceCleaned 100 times with Dimethylbenzene without change
Cleaning Resistance>1000 times without change
Peel Strength>5 Newton / mm
Tech

Colours

Alupanel Lite can also be colour matched to almost any RAL colour - allowing corporate colours to be matched with ease.

GLOSSMATTMETALBRUSHED
900550021023302070169003
900550021023302070169003
9006
