A high quality Fire Resistant panel with a specially formulated halogen-free core material designed to offer enhanced fire resistance whilst retaining excellent fabrication characteristics and outstanding adhesion strength.

Why use AlupanelFR?

  • New FR core for a light yet strong fire resistant panel
  • Manufactured using 5005 alloy in the UK
  • UV resistant for outdoor use
  • Flat, smooth, uniform surface
  • For screen and digital print
  • Can be fabricated, folded and formed
  • Clean, easy-peel film
  • Premium quality product
  • 5 year warranty *


* PANELS WITH THE FINISH "BRUSHED ALUMINIUM" NOW HAVE A 5 YEAR WARRANTY FOR EXTERNAL USE (ALUPANEL 0.3)

All other brushed and mirror finishes are guaranteed for interior use only

AdhesiveCo-extruded to give superior adhesionCoreSpecially formulated fire resistant coreAluminium skin0.3mm high grade aluminium offeringbetter performance, improved rigidityand excellent processing characteristicsfor easier cutting/bending, etc.Paint FinishAvailable in a wide range of colours andfinishes, painted Alupanel is a dualsided sheet with one side in high glossand the reverse in a matt finish.Protective filmDesigned to protect the panel duringstorage, transit and installation

Full Details

Our product development team have worked tirelessly to develop a panel that offers our customers a product that is suitable for an immense variety of applications, including environments where improved fire classification is required, but without sacrificing build quality.

AlupanelFR can be rolled, folded and formed extremely easily. Test results show excellent flexibility with a combination of exceptional strength, allowing numerous fabrication options with no risk to the physical integrity of the panel.  Also, AlupanelFR machines much more quickly and with significantly less wear to the cutting tools, saving fabricators both time and money.



For further information, you can access the product brochures and technical documents below.

VIEW BROCHURES

Applications

AlupanelFR is suitable for a huge range of applications in a variety of industries including those where fabrication is required

  • Sign Making

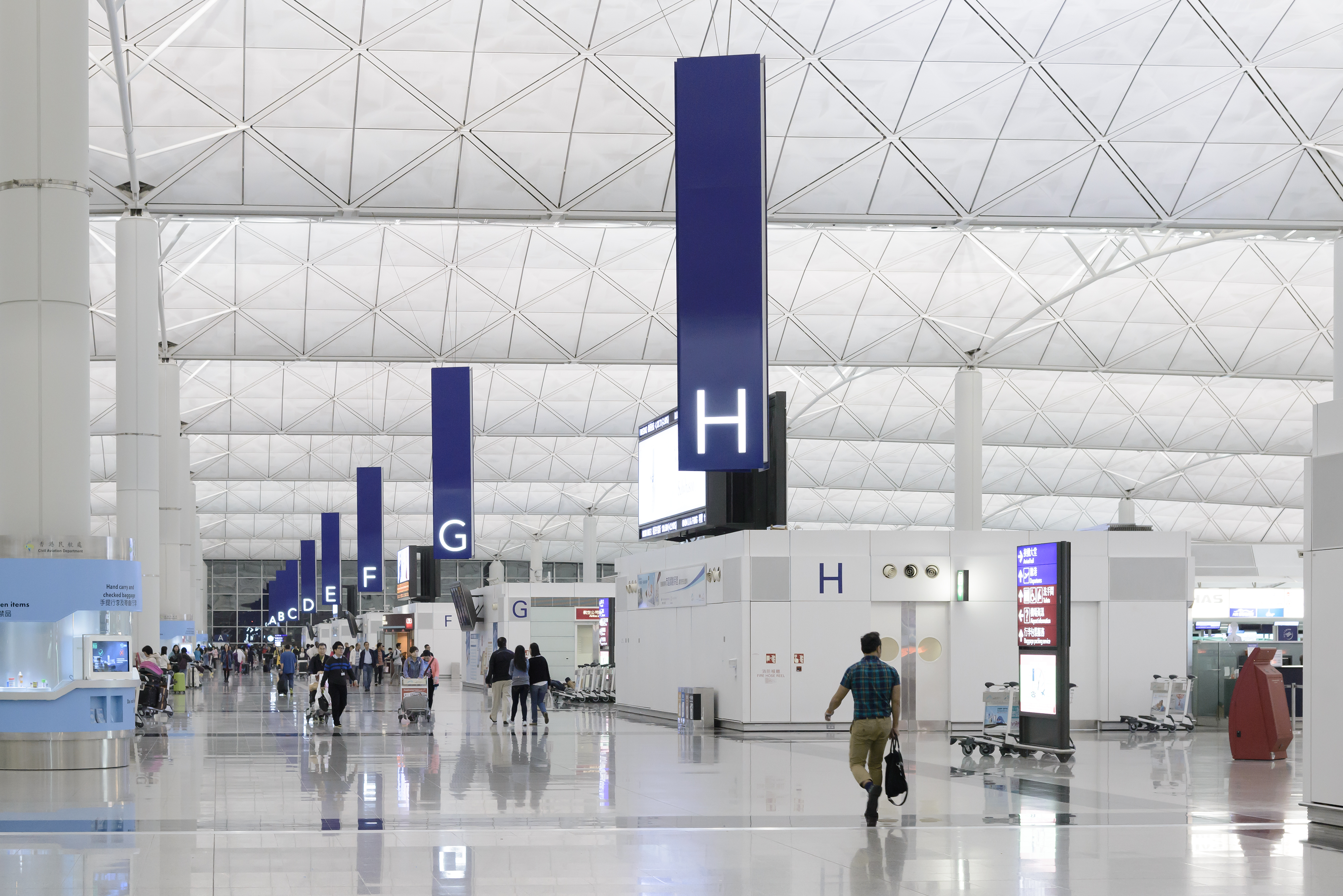

  • Wayfinding
  • 3D Lettering
  • POS Displays
  • Vinyl Application
  • Modular Sign Systems

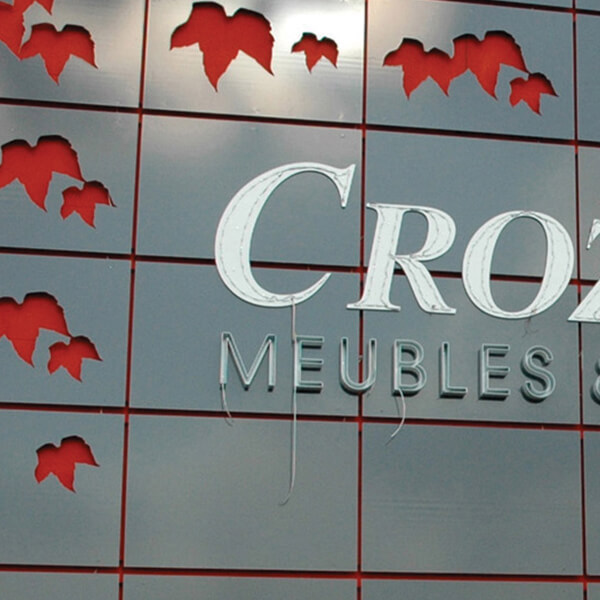

  • Shop/External Fascias
  • Corporate ID
  • Exhibition Design
  • Outdoor Advertising
  • Interior Panels & Decoration
  • Direct UV & Screen Printing
  • External Facades
  • Transport
  • Interior Cladding
  • Modular building/offsite construction

Technical

Here are the sheets sizes and thicknesses available as standard along with the technical specification of AlupanelFR.

Panel Thickness (mm)3
Skin Thickness (mm)0.3
Weight (KG/m2)4.3
1000mmx2015mm
1000mmx2440mm
1000mmx2050mm
1000mmx3050mm
1220mmx2440mm
1220mmx3050mm
1250mmx2500mm
1250mmx3050mm
1500mmx3050mm
1500mmx4050mm
1525mmx3050mm
1560mmx3050mm
2000mmx3050mm
2000mmx4050mm
2050mmx3050mm
2050mmx4050mm
Panel Thickness (mm)3
Sound Absorption0.05
Sound Attenuation24
Water Absorption % by Volume0.01
Thermal Performance R Values0.0080
Core CompositionFR mix
Fire PerformanceEN 13501-1:2007 Class D
Tensile Strength of Aluminium Layers149MPa
Panel Thickness (mm)+/- 0.2
Width (mm)-0 +2
Length (mm)-0 +3
Diagonal-0 +5
Thermal Expansion2.4mm/m @100ºC Temp Difference
Aluminium ThicknessAs specified in EN485-4
Paint Thickness (microns)20
Pencil Hardness2H
Toughness of Coating3T
Temperature Resistance-50ºC to +80ºC
Impact Strength (kg/CM2)50
Boiling Water ResistanceBoiling for 2hrs without change
Acid ResistanceSurface immersed in 2% HC1 for 24hrs without change
Alkali ResistanceSurface immersed in NaHO engine oil for 24hrs without change
Oil ResistanceSurface immersed in 20# engine oil for 24hrs without change
Solvent ResistanceCleaned 100 times with Dimethylbenzene without change
Cleaning Resistance>1000 times without change
Peel Strength>5 Newton/mm

Colours

In addition to our stock range, AlupanelFR can also be colour matched to almost any RAL colour - allowing corporate colours to be matched with ease.
