Alupanel Eco

Alupanel Eco aluminium composite panels (ACP) are a highly efficient, economic solution for all flat applications.

Why use Alupanel Eco?

  • Extremely rigid
  • High UV resistance
  • Incredibly flat, smooth finish
  • Suitable for digital/screen printing, vinyl application and painting
  • Excellent value
  • 1 year warranty
AdhesiveCo-extruded to give superior adhesionCoreHigh quality PE coreAluminium skin0.15mm aluminium providing a superbflat, smooth surfacePaint FinishQuality PE paint with a matt/matt finishsuitable for digital/screen printing,vinyl application and paintingProtective filmDesigned to protect the panel duringstorage, transit and installation

Multipanel is a competent and reliable partner for us. The service internal as well as external is excellent and the agreements and delivery dates are respected. The product quality is on a high level and comparable with the competitive products on the market at any time. The newly added coatings and core choices for A-Lite that have recently been introduced, are a sensible addition to the already large product portfolio....

Customer from Germany
Alupanel Aluminium Composite Panel

Full Details

Alupanel Eco Aluminium Composite Panels are a highly efficient, economic solution for all flat applications.

Providing amazing value for money, Alupanel Eco is the obvious choice for short term projects using 2440mm x 1220mm panels where no load will be applied to the panels.

Available in Matt Signal White 9003, all Alupanel Eco products have a 1 year guarantee.


For further information, you can access the product brochures and technical documents below.

VIEW BROCHURES
Alupanel Aluminium Composite Panel

Applications

Alupanel Eco is recommended for flat applications only.

  • Wayfinding
  • Vinyl Application
  • Hoarding Panels
  • Outdoor Advertising
  • Direct UV & Screen Printing
04 News Print Week Hoarding 1Bd784A51D 1000X1000
Img 0003 Blank 1000X1000

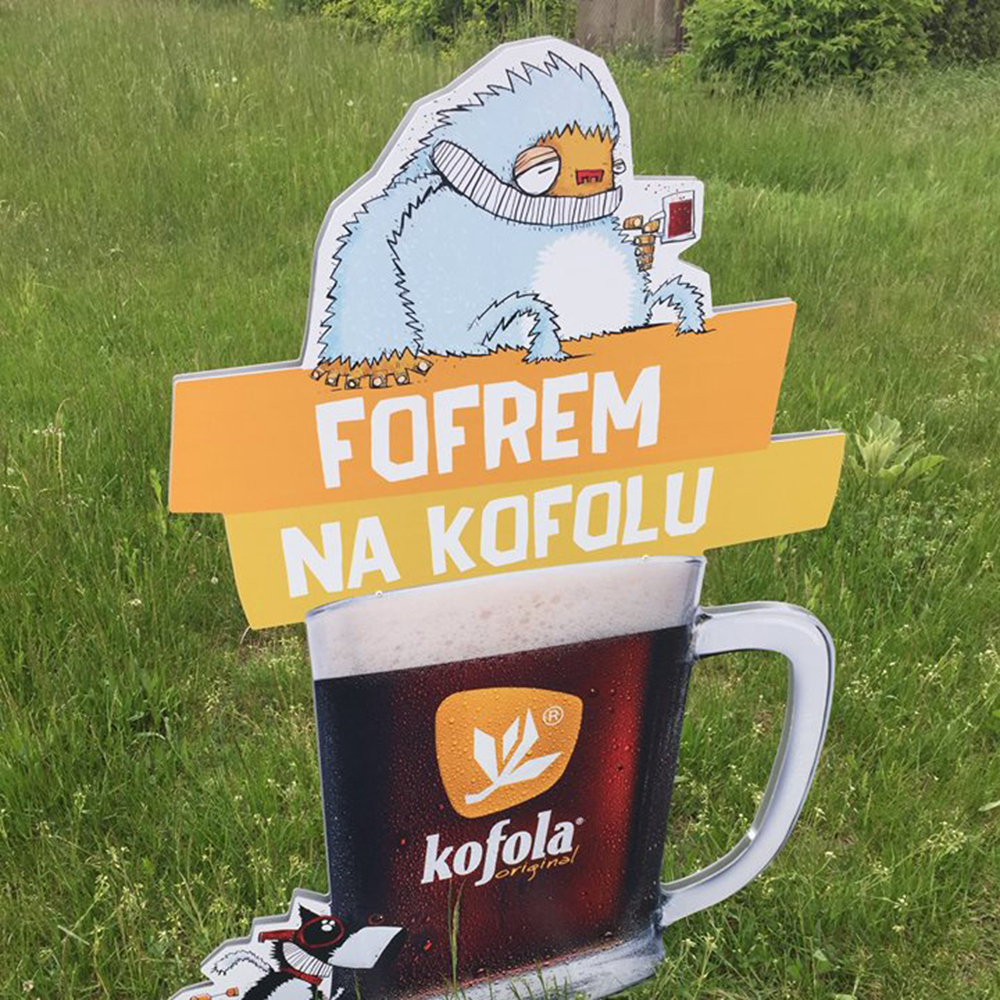

11401274 884475078292033 5973896750015388336 N 1000X1000
Sb 9 1000X1000

Technical

Here are the sheet sizes and thicknesses available as standard along with the technical specification of AlupanelEco.

Panel Thickness (mm)23
Skin Thickness (mm)0.150.15
Weight (KG/m2)2.463.4
1000mmx2015mm
1000mmx2440mm
1000mmx2050mm
1000mmx3050mm
1220mmx2440mm
1220mmx3050mm
1250mmx2550mm
1250mmx3050mm
1500mmx3050mm
1500mmx4050mm
1525mmx3050mm
1560mmx3050mm
2000mmx3050mm
2000mmx4050mm
2050mmx3050mm
2050mmx4050mm
Panel Thickness (mm)23
Sound Absorption0.050.05
Sound Attenuation2324
Water Absorption % by Volume0.010.01
Thermal Performance R Values
Core Composition
Fire PerformanceClass 1 BS476 PT7 Class 0 BS476 PT6Class 1 BS476 PT7 Class 0 BS476 PT6
Tensile Strength of Aluminium Layers149MPa149MPa
Panel Thickness (mm)+/- 0.2
Width (mm)-0 +2
Length (mm)-0 +3
Diagonal-0 +5
Thermal Expansion2.4mm/m @100˚C Temp Difference
Aluminium Thickness± 0.02
Paint Thickness (microns)20
Pencil Hardness>HB
Toughness of Coating3T
Temperature Resistance-50˚C to +80˚C
Impact Strength (kg/CM2)50
Boiling Water ResistanceBoiling for 2hrs without change
Acid ResistanceImmerse Surface in 2% HC1 for 24hrs without change
Alkali ResistanceImmersed surface in 2% NaOH for 24hrs without change
Oil ResistanceImmerse Surface in 20# engine oil for 24hrs without change
Solvent ResistanceCleaned 100 times with Dimethylbenzene without change
Cleaning Resistance>1000 times without change
Peel Strength>5 Newton / mm
Tech

Colours

Only available in Signal White 9003

Alupanel Eco can be matched to almost any non-standard RAL colour, with a MOQ requirement of approximately 600m2. For more information please contact your local distributor or sales representative.
